PlayStation® 4
Cronus Zen supports all versions of the PlayStation® 4 console, including all variations of DualShock4® controllers (USB & Bluetooth).
Remember, when using Cronus Zen, any supported device (controllers, mice, keyboards) will work with your PlayStation® 4 console! 🎮🚀
Console Version | Supported |
|---|---|
PlayStation® 4 | YES |
PlayStation® 4 Slim | YES |
PlayStation® 4 Pro | YES* |
*The Cronus Zen CONSOLE/PC USB cable must be connected to the REAR USB PORT of the PlayStation 4 Pro. The front USB ports do not have enough power for the Cronus Zen.
All special editions and variations of the official Sony DualShock4® are compatible with Cronus Zen (both USB & Bluetooth supported).
Controller Model | USB | Bluetooth | Audio (USB) | Auth |
|---|---|---|---|---|
DualShock4® v1 (CUH-ZCT1X) | YES | YES | NO | NO |
DualShock4® v2 (CUH-ZCT2X) | YES | YES | YES | YES |

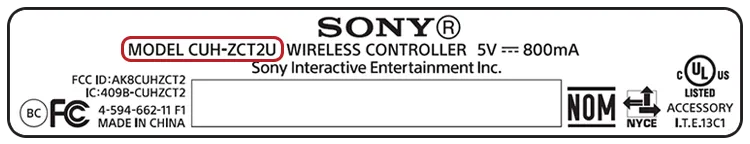

X: U=USA, E=Europe, J=Japan
DUALSHOCK4® V2 SUPPORT

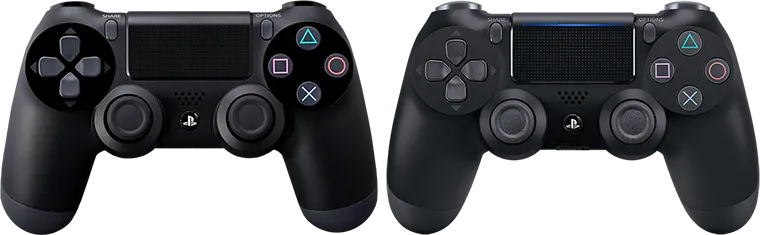

There are two DualShock4® models DS4v1 and DS4v2. While v1 does great for basic gaming, it does not support audio (no headsets and no DS4 speaker) and will not work as an AUTH controller for PS4 crossover setups.
Meanwhile, the DS4v2 has your back, fully supporting all gaming, audio, and crossover setup needs. Spot a blue lightbar on the touchpad? That's a DS4v2!
The original, and most third-party versions of PlayStation® Move (L + R) controllers can easily pair to the Zen by Bluetooth - Left Bluetooth channel, & Right Bluetooth channel👍
The following are third-party licensed PS4 controllers that have been verified to work with Cronus Zen. If you're using a controller that works but not listed here, we'd love to know! Reach out to us at cronus.support. 🥰
For Bluetooth support on a PlayStation® 4 console, some third-party licensed controllers require a DualShock4® v2 AUTH controller connected to A1.
PS4 Controller Model | USB | Wireless |
|---|---|---|
Astro C40 TR | YES | YES (Adapter) |
Hori PS4 Mini-Pad | YES | NO |
Horipad 4 FPS | YES | NO |
Horipad FPS Plus | YES | NO |
Mad Catz Street Fighter V FightStick TE2+ | YES | NO |
Nacon Compact Wired Controller | YES | NO |
Nacon Revolution Pro v1 | YES | NO |
Nacon Revolution Pro v2 | YES | NO |
Nacon Revolution Pro v3 | YES | NO |
Nacon Revolution Unlimited Pro | YES | YES (Adapter) |
PowerA Fusion Pro | YES* | NO |
Razer Raiju Tournament Edition | YES | NO |
Razer Raiju Ultimate | YES | NO |
Scuf Infinity4PS Pro (DS4 v1 Model) | YES | YES (BT) |
Scuf Infinity4PS Pro (DS4 v2 Model) | YES | YES (BT) |
Scuf Impact | YES | YES (BT) |
Scuf Vantage | YES | NO |
Scuf Vantage 2 | YES | NO |
*Requires PC mode which will output as an Xbox controller.
These controllers are NOT currently compatible with Cronus Zen:
- Thrustmaster eSwap Pro
- All Unlicensed PS4 Controllers
- All Flight Sticks
- All H.O.T.A.S.
Note: Connecting an unsupported controller might trigger an E3 Error Code. Simply unplug/replug the USB cable to reset.
This guide will show you how to connect any controller to a PlayStation® 4 console.
First make sure your Zen is updated to . If it isn't, you'll need to visit STEP 1: Update Firmware.
Note: If you have a PS4 Pro, the Cronus Zen must be connected to a rear USB port, not the front.
OK, Let's get after it.
- Connect the Cronus Zen to your PC using the PROG USB cable.
- Open Zen Studio .
- Select the Device panel.
- Set the Emulator Output Protocol to PLAYSTATION 4.

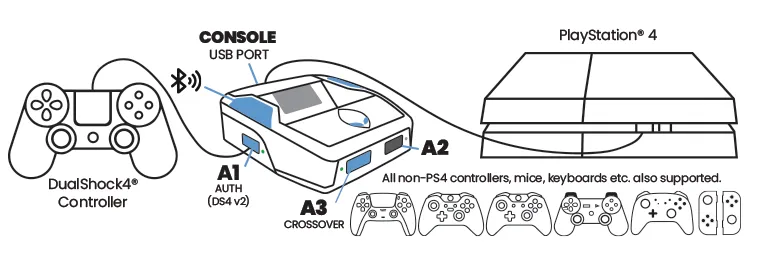

- DualShock4® Controller (USB Only):
- Connect to the A1 USB port. That's it. 😁
- Crossover Gameplay:
- Other devices such as non-PS4 controllers, mice, keyboards etc. use the A3 USB port, and also the A2 port if you need to connect two devices.
- You can also use a secondary device alongside a DualShock4® controller such as a mouse for enhanced aiming, or a keypad with dozens of assigned MACROs.
- Crossover Note:
- A DualShock4® v2 controller must be connected to A1 while using any crossover device on a PlayStation® 4. The DS4v1 will not work as AUTH.
- Bluetooth Pairing:
- Tap Zen's Bluetooth pairing button (P2) for pairing mode, then...
- DualSense® Controllers: There is currently no Bluetooth support. Use USB.
- Nintendo® Switch Controllers: Hold down sync button for pairing mode.
- DualShock® Controllers: Hold down SHARE + PS for pairing mode.

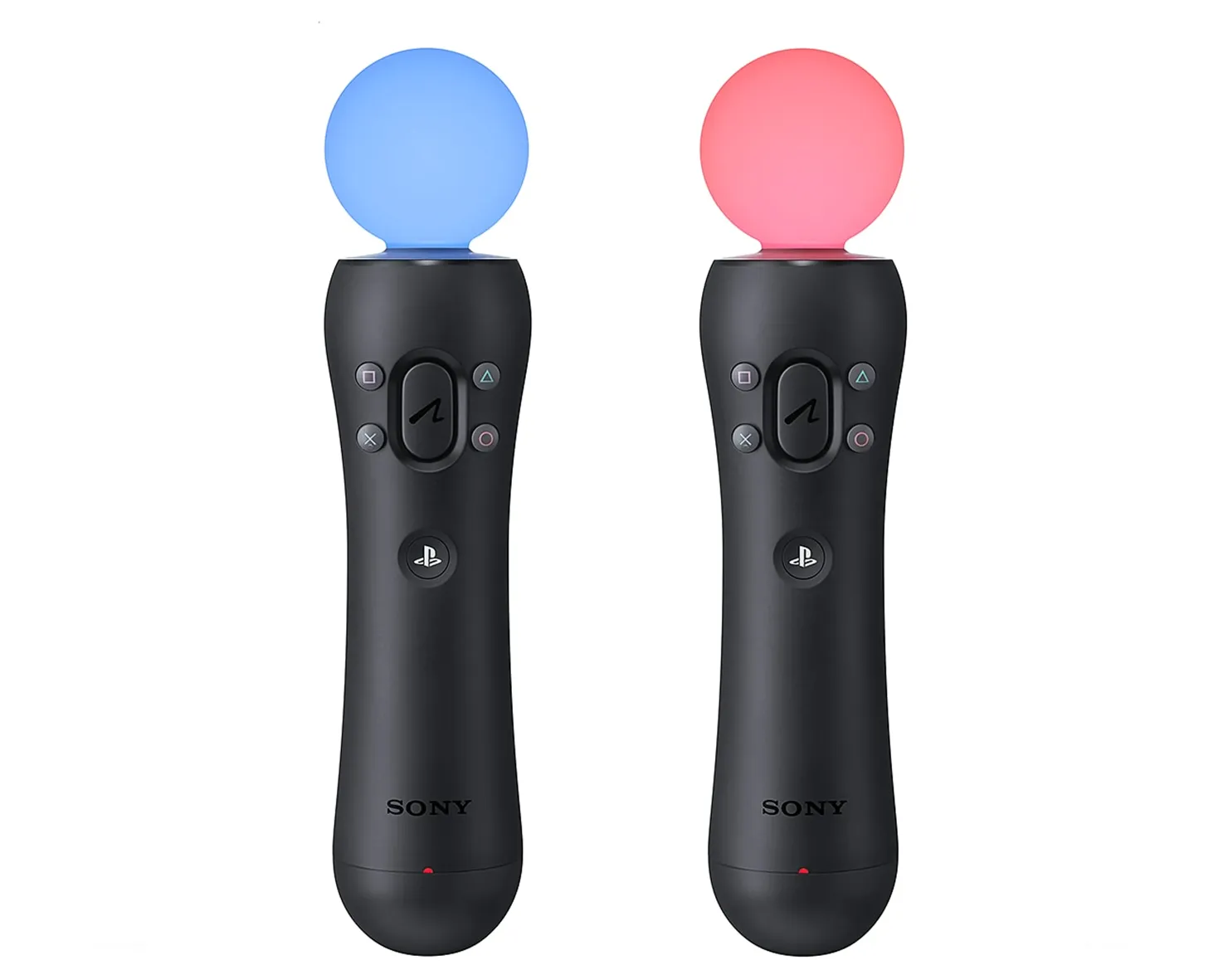

- PlayStation Move® (L+R) (Bluetooth):
- The PlayStation Move® Left & Right Controllers have to be paired separately to the Cronus Zen.
- Move (Blue) : Tap Zen's Bluetooth pairing button (P2) for pairing mode, then hold down the Move sync button and after a few seconds it will pair.
- Move (Pink) : Tap Zen's Bluetooth pairing button again, then hold down the Move sync button and it will also pair. That's it. 😁
- Wireless Adapters:
- To achieve wireless support for Xbox controllers, the Xbox Wireless Adapter is required. Plug it into A3, connect the Xbox® controller to A2 for a few seconds, then unplug. Soon, the LED on the Adapter and controller will turn solid white, indicating successful pairing.
- The Astro C40 adapter can also be connected to A3.
🔋 IMPORTANT
Your controller might not charge when connected via Zen. Ensure its fully charged or equipped with fresh batteries to prevent disconnections.
🎧 WIRED HEADSETS
Considering the wide variety of headsets, controllers, and consoles, we can't promise full audio functionality for every combo, especially third-party controllers. However, many official controller USB setups are compatible.
Give yours a try and find out! 🎮
